Remotely controlled self-propelled platform "Chimera" (X-01)
TACTICAL AND TECHNICAL CHARACTERISTICS
➢ Remote control distance from the operator via video and radio channel without a relay system:
➢ in open terrain in the direct line of sight – 1.5 km.
➢ on rough terrain (hills, forest, civil and industrial buildings – 1 km
➢ Remote control distance from the operator via video and radio channel with repeater – up to 5 km.
➢ Moving speed: not less than 30.0 km/h
➢ Total power of electric motors:
➢ nominal: 440 W
➢ maximum: 800 W
➢ The operator’s control panel is equipped with a remote control system of the “joystick” type and a monitor for video surveillance in real time.
➢ The distance that can be covered on one battery charge off-road without additional cargo – 30 km.
➢ Recommended weight of cargo for transportation – 30 kg.
➢ The distance that can be covered on one battery charge off-road with a load of 20 kg – 10 km.
➢ The time that can be in video surveillance mode on maximum controllable distance 90 hours.
➢ Battery capacity – 30 A/hour lithium-ion with CRM control system.
➢ Electronic wheel lock function, for holding on steep slopes.
➢ Availability of additional output/signal connectors for remote control of devices installed on the platform: 13 pcs.
➢ Maximum possible angle that can be overcome under full load – 40 degrees
➢ Dimensions (mm): L x W x H – 630.0×580.0x240.0.
➢ Clearance (mm): 140.0
➢ Height of the control mast (mm): 600.0
➢ Weight excluding packaging – 30.5 kg
➢ The kit includes:
➢ self-propelled platform,
➢ complete case (control panel, monitor, power supply/charging unit),
➢ platform fast charging unit.

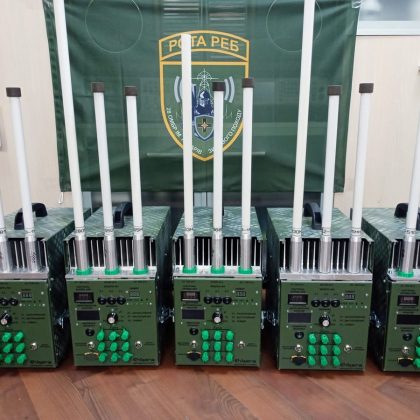

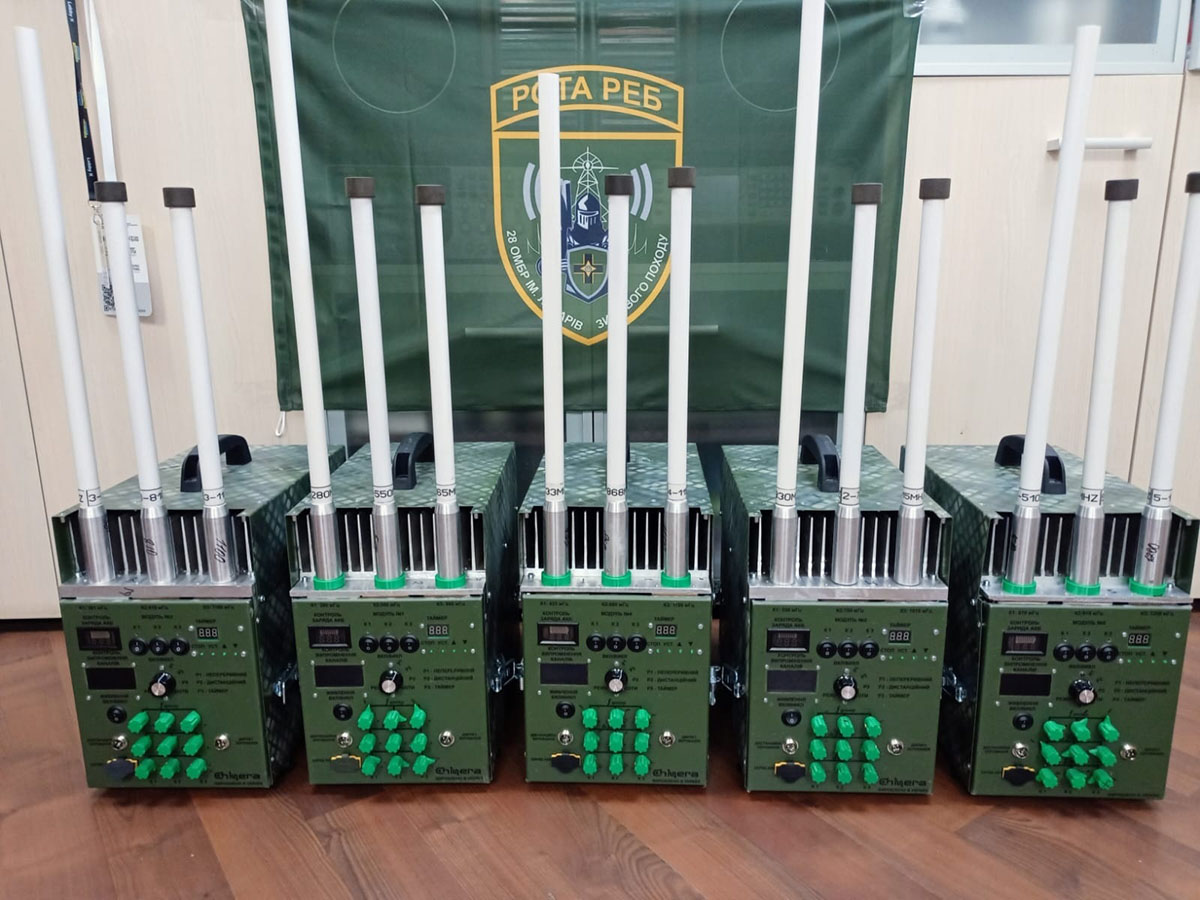

MAIN TECHNICAL PARAMETERS
➢Antenna type: Spiral and collinear
➢ Frequency range of radio electronic suppression: 330 MHz – 1200 MHz
➢ Interference power at the output of the interference generation device: 50W / 100W
➢ Radio electronic suppression range: 100 – 250 meters depending on the antenna
➢ Detection range: not less than 800 meters via video channel
➢ Detection frequency ranges: 1200 MHz
➢ Power supply: 12/24 or 36/48
➢ Ability to operate from internal battery: Yes
➢ Continuous operation time from internal battery: 4 hours
The carrier for the EW system can be the Remotely controlled self-propelled platform “Chimera”
Remotely controlled self-propelled platform "Chimera" (X-02)
TACTICAL AND TECHNICAL CHARACTERISTICS
➢ Remote control distance from the operator via video and radio channel without a repeater system – 1.5 km.
➢ Remote control distance from the operator via video and radio channel with a repeater – up to 5 km.
➢ Moving speed (km/h): up to 40.0
➢ Electric motor power:
➢ nominal – 1.04 kW
➢ maximum – 2.8 kW
➢ The operator’s remote control is equipped with a remote control system and a monitor for real-time video surveillance.
➢ Distance that can be covered on a single battery charge off-road without additional cargo – 60 km.
➢ Recommended cargo weight for transportation up to 3 km – 80 kg.
➢ Time that can be in video surveillance mode at the maximum controllable distance – 150 hours.
➢ Battery capacity – 30 A/hour lithium-ion with CRM control system.
➢ Electronic wheel lock function, for holding on steep slopes.
➢ Availability of additional outputs/signals for devices installed on the platform (pcs): 13
➢ Size (mm): L x W x H – 700.0×630.0x330.0
➢ Ground clearance (mm): 170.0
➢ Control mast height (mm): 600.0
➢ Weight excluding packaging – 42.5 kg
The kit includes:
- self-propelled platform,
- complete case (control panel, monitor, power supply/charging unit),
TACTICAL AND TECHNICAL CHARACTERISTICS
They are also equipped with a lithium-ion plate-type battery, we assemble them ourselves, of the power that we need for specific tasks. Their difference is that they work reliably in the winter. So they can also be useful as a charger (power bank) for other devices in the absence of standard power. For this, each drone has the appropriate connectors.
To charge the drone battery, there is a 220V/50Hz input, a power supply (charger).
We are also working on the task of quickly replacing the battery, so that it would be enough to pull it out and insert the second one without disassembling/assembling the drone.
TACTICAL AND TECHNICAL CHARACTERISTICS
➢ Remote control distance from the operator via video and radio channel without a relay system – 1.5 km.
➢ Remote control distance from the operator via video and radio channel with a relay – up to 5 km.
➢ Moving speed (km/h): not less than 35.0
➢ The operator’s remote control is equipped with a remote control system and a monitor
for real-time video surveillance.
➢ The distance that the battery can cover on a single charge off-road without additional cargo – 60 km.
The recommended cargo weight for transportation up to 3 km is 70 kg.
➢ The time that can be in video surveillance mode at the maximum controllable distance – 100 hours.
➢ Battery capacity – 30 A/hour lithium-ion with CRM control system.
➢ Electronic wheel lock function, for holding on steep slopes.
➢ Availability of additional outputs/signals for devices installed on the platform (pcs):
➢ Dimensions (mm): L x W x H – 700.0×620.0x330.0
➢ Clearance (mm): 170.0
➢ Height of the control mast (mm): 600.0
➢ Weight excluding packaging – 42.5 kg
➢ The kit includes: self-propelled platform, complete case (control panel, monitor, power supply/charging unit)
TACTICAL AND TECHNICAL CHARACTERISTICS
Includes all the necessary blocks for controlling automated platforms. The operator has a total of a few minutes for quick deployment. The console case securely stores all the blocks, there is no need to waste time and study the instructions for switching the blocks. Large curtains shade the sun’s radiation on the monitor. The built-in power supply and charging unit significantly simplifies the operation of the equipment.
TACTICAL AND TECHNICAL CHARACTERISTICS
➢ Designed for fast charging of Li-ion / LiFe batteries.
➢ It also works in the reverse direction as a guaranteed power source.
➢ Power 900W, charging current 21.4A.
➢ As a guaranteed power source at the output 220V/50Hz, and USB 3.0 QC – 2pcs.
